class 150~900Lb forged steel trunnion ball valve Series:Ball Valve
1.Forged ball valve feature
forged ball valve,the forging material can ensure sufficient rigidity and strength under maximum rated operation pressure without inherent flaw of cast. Enough wall thikness of separate body and adaptation of high strength tie bolts are convenient for valve maintenance and sufficient to bear the stress of pipe.The internal parts of valve are carefully designed and selected to ensure reliability under all kinds of work condition.
2.Anti-fire safe design
When the trunnion ball valve be used normally,its sealed by seat and ball surface,seat retainer sealed by O-ring and body,this is soft sealed and reliable sealing.When the seat and O-ring are burnt,the seat retainer and body will be sealed by expanded graphite.Thus act anti-fire safe purpose.
3.Anti-static device
In order to prevent friction among ball,stem and PTFE that generates static electricity which may light the combustibles and explosives that cause an accident,in this ball valve,static-conduction spring is set between the stem and the ball,the stem and the body.Thus static electricity is conducted to ground and system safety is secured.
4.Free leakage of body Sealed construction
The connective position of valve body and bonnet is double sealed by gasket and O-ring,on this base,such factors as fire,high temperature,shock and uneven opening or closing of the torque all can't induce external leakage.
5.Low torque in operation
The self-lubricated bearings are installed at the friction of stem,resulting in wear resistance,fiexibilityof operation and low torque.
6. Double block&bleed(DBB)
When ball is full open or close position,the transmitter substance in center cavity of body can be released by drainage and emptying devices.In addition,the over loaded pressure in the center cavity of valve can be released to low pressure end by self relief seat.
7.Emergency sealing
Compound injection holes are designed and compound injection valves are installed at locations of stem/cap and body support of side valve.When sealing of stem or seat is damaged to induce leakage,the compound can be used to do the second time sealing.A concealed check valve is installed in side of each compound injection valve to prevent compound from out flowing due to the action of transmitter substance.The top of the compound injection valve is the connector for fast connection with compound injection gun.
8.Extension stem
For the underground installed valve,the stem can be lengthened and for the convenience of operation the corresponding compound injection nozzle and drainage valve can be extended to the top of valve.
9.Automatic body cavity relief
When the body pressure going up un-normally as the unstable factor,the trunnion ball valve downstream seat will be pushed by unnormalpressure,and the release the un-normally pressure automatically,it doesn't damage to the sealing of upstream seat.
10.Various driving types
The top pad of valve designed according to ISO 5211,which is convenient for connection and exchange of various drivers.The common driving types are manual,electrical,pneumatic and pneumatic/hydraulic
FORGED STEEL trunnion mounted Ball Valve CLASS 150~1500
Bolted cover or welded cover,three-piece Body,fixed Ball
Full or Reduced bore,Blowout Proof Stem
Fire safe and Anti static
Dual seat with injection and drain & outlet
ASTM A105N,A182 F304,A182 F316,A182 F304L,A182 F316L
Standards compliance
Design and manufacture: ANSI B16.34,API 608,API 6D,BS5351
Face to face dimensions: ANSI B16.10,API 6D
Flanged connection: ANSI B16.5
Butt welded: ANSI B16.25
Fie-safe: API 607~API 6FA
Test and inspection: API 598,API6D
|
Standard material specifications |
|||||
|
Part name |
Material |
||||
|
Body |
A105 |
A182 F304 |
A182 F316 |
A182 F304L |
A182 F316L |
|
Body cap |
A105 |
A182 F304 |
A182 F316 |
A182 F304L |
A182 F316L |
|
Ball |
A105+Nip |
A182 F304 |
A182 F316 |
A182 F304L |
A182 F316L |
|
Stem |
A105+Nip |
A182 F304 |
A182 F316 |
A182 F304L |
A182 F316L |
|
Seat |
A105+Nip |
A182 F304 |
A182 F316 |
A182 F304L |
A182 F316L |
|
Seat ring |
PTFE/RPTFE/NYLON |
||||
|
Fixed turnnion |
A105+Nip |
A182 F304 |
A182 F316 |
A182 F304L |
A182 F316L |
|
O-ring |
VITON |
VITON |
VITON |
VITON |
VITON |
|
Contact spring |
17-7PH/In conel |
In conel |
In conel |
In conel |
In conel |
|
Cover bolt |
A193 B7 |
A193 B8 |
A193 B8M |
A193 B8M |
A193 B8M |
|
Cover nut |
A194 2H |
A194 8 |
A194 8M |
A194 8M |
A194 8M |
|
Bearing |
SF-1 |
SF-1 |
SF-1 |
SF-1 |
SF-1 |
CLASS 150lb~1500lb FORGED STEEL trunnion mounted Ball Valve
|

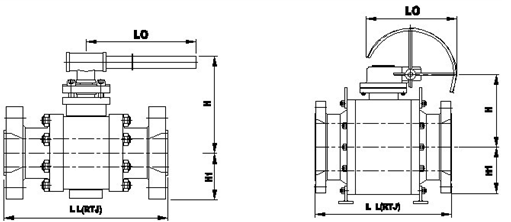

Dimensions & weights |
||||||||||||
|
Class 150lb |
||||||||||||
|
Size |
inch |
2 |
3 |
4 |
6 |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
|
L(RTJ) |
mm |
178 |
203 |
229 |
394 |
457 |
533 |
610 |
686 |
762 |
864 |
914 |
|
H |
mm |
153 |
195 |
213 |
500 |
568 |
605 |
662 |
725 |
770 |
970 |
935 |
|
H1 |
mm |
139 |
178 |
191 |
220 |
289 |
318 |
382 |
430 |
470 |
489 |
528 |
|
L0 |
mm |
400 |
600 |
850 |
400* |
400* |
400* |
400* |
800* |
800* |
600* |
500* |
|
Weight |
mm |
30 |
50 |
90 |
203 |
289 |
450 |
588 |
676 |
864 |
764 |
911 |
|
Dimensions & weights |
||||||||||||
|
Class 300lb |
||||||||||||
|
Size |
inch |
2 |
3 |
4 |
6 |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
|
L |
mm |
216 |
283 |
305 |
403 |
502 |
568 |
648 |
762 |
838 |
914 |
911 |
|
L(RTJ) |
mm |
232 |
299 |
321 |
419 |
518 |
584 |
664 |
778 |
854 |
930 |
1010 |
|
H |
mm |
153 |
195 |
213 |
500 |
569 |
605 |
662 |
725 |
770 |
970 |
935 |
|
H1 |
mm |
139 |
178 |
191 |
220 |
289 |
318 |
382 |
430 |
470 |
489 |
528 |
|
L0 |
mm |
600 |
1250 |
1300 |
400* |
400* |
400* |
400* |
800* |
800* |
600* |
500 |
|
Weight |
mm |
30 |
50 |
90 |
203 |
289 |
450 |
588 |
676 |
864 |
764 |
911 |
|
Dimensions & weights |
||||||||||||
|
Class 600lb |
||||||||||||
|
Size |
inch |
2 |
3 |
4 |
6 |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
|
L |
mm |
292 |
356 |
432 |
559 |
660 |
787 |
838 |
889 |
991 |
1092 |
1194 |
|
L(RTJ) |
mm |
295 |
359 |
435 |
562 |
663 |
790 |
841 |
892 |
994 |
1095 |
1200 |
|
H |
mm |
153 |
195 |
213 |
500 |
569 |
645 |
702 |
750 |
815 |
970 |
1065 |
|
H1 |
mm |
119 |
145 |
180 |
220 |
289 |
318 |
382 |
430 |
470 |
489 |
561 |
|
L0 |
mm |
600 |
1250 |
1300 |
400* |
400* |
457* |
457* |
800* |
800* |
600* |
600* |
|
Weight |
mm |
32 |
64 |
122 |
267 |
521 |
773 |
1118 |
1700 |
1970 |
1218 |
1646 |
|
Dimensions & weights |
||||||||||||
|
Class 900lb |
||||||||||||
|
Size |
inch |
2 |
3 |
4 |
6 |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
|
L |
mm |
368 |
381 |
457 |
610 |
737 |
838 |
965 |
1029 |
1130 |
1210 |
1321 |
|
L(RTJ) |
mm |
372 |
384 |
460 |
613 |
780 |
841 |
968 |
1038 |
1140 |
1232 |
1334 |
|
H |
mm |
162 |
205 |
239 |
591 |
700 |
700 |
820 |
950 |
990 |
1030 |
1200 |
|
H1 |
mm |
119 |
145 |
180 |
213 |
254 |
327 |
368 |
442 |
483 |
523 |
615 |
|
L0 |
mm |
600 |
1250 |
1300 |
450* |
600* |
750* |
750* |
600* |
600* |
600* |
600* |
|
Weight |
mm |
48 |
78 |
138 |
275 |
547 |
847 |
1224 |
1676 |
2083 |
2694 |
3515 |
|
Dimensions & weights |
||||||||||||
|
Class 1500lb |
||||||||||||
|
Size |
inch |
2 |
3 |
|
|
8 |
10 |
12 |
14 |
16 |
18 |
20 |
|
L |
mm |
368 |
470 |
546 |
4 |
6 |
991 |
1130 |
1257 |
1384 |
1537 |
1664 |
|
L(RTJ) |
mm |
372 |
473 |
549 |
711 |
841 |
1000 |
1146 |
1276 |
1407 |
1559 |
1686 |
|
H |
mm |
197 |
254 |
291 |
655 |
660 |
735 |
860 |
950 |
1065 |
1235 |
1275 |
|
H1 |
mm |
119 |
145 |
180 |
213 |
278 |
384 |
440 |
442 |
483 |
576 |
615 |
|
L0 |
mm |
600 |
1250 |
1300 |
760* |
450* |
450* |
660* |
600* |
750* |
750* |
750* |
|
Weight |
mm |
55 |
97 |
162 |
328 |
668 |
936 |
1408 |
1861 |
2392 |
3220 |
4491 |
